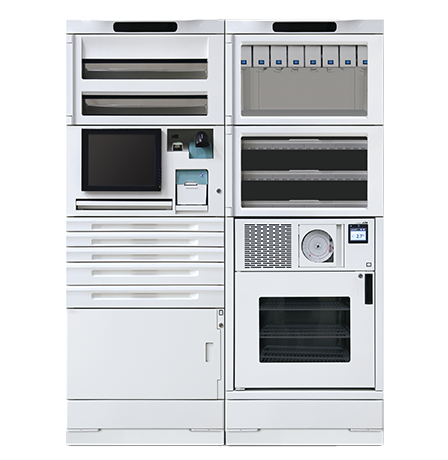

INTIPharm - CSS, SC Semi-automated Medication Dispensing Cabinet System

This is a medicine distribution cabinet system that can either manually or automatically dispense
medicines required by patient based on the prescription. All history and inventory status are recorded,
which can be then tracked and managed when necessary.

INTIPharm - CSS, SC

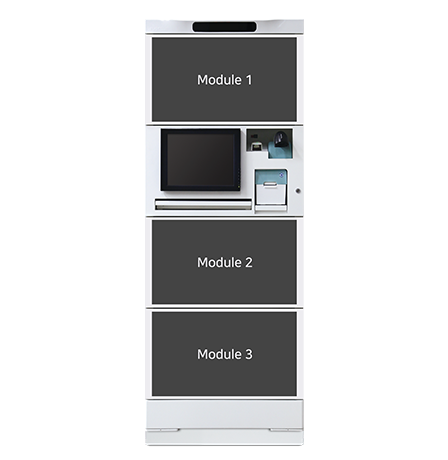

Control Station – CSS
[Control Station for Supply Cabinet]

This module can control three types of cabinets; DCH, SC, and CC.
You can add extra modules to this control station as necessary.

Access control with Finger-vein Reader

The administrator can assign different level of access to each user as appropriate.
When a user logs in using finger-vein reader, the access & use of the system will be limited to the given access level.

Indication of medicine location to dispense

The LED indicator on the location which includes medicines to dispense turns on to help the operator to identify the location quickly.

History management with barcode scanning

When performing manual dispensing, you can scan the barcode of the item to add to the dispensing history.

Medicine details printed on the label

You can compare the medicine details printed on the label with actual medicines dispensed to prevent administration mistakes.

Easy-to-use touchscreen operation

The user can easily operate the system with the intuitive and easy-to-use touchscreen.
It also supports the user for efficient medication control by leveraging details of the medicines stored in the system as well as dispensing history.

Cabinet - SC
[Supply Cabinet]

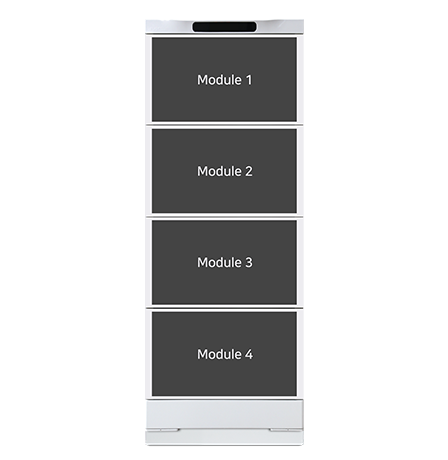

This cabinet can have up to four modules to store different types of medicines as well as special drugs for treatment.



1. Feature Main.png


Autobox

This module has autoboxes mounted for automatic dispensing of the items.

Narcotics Safe

This is a special unit with dual lock mechanism
to store items which need special attention / control such as drugs and narcotics.

Drawer

This module has a series of individual cell with automatic lock mechanism

Shelf

This shelf module can store various types of items and clinical materials.
Two types are available; Shelf and Tilting types

Cathrack

This module can store long medicines and clinical materials.

Refrigerator

This module can store medicines and clinical materials that need to be refrigerated.


Product Spec

※ Product exterior and specifications are subject to change due to the company's research and development results without any prior notice.

Control Station - CSS

Model JV-CSS10
Dimensions(W*D*H) 750*580*1,950㎜
Weight

About 200~300㎏
(varies from module combination)

Display and input Touch Screen 43㎝(17″), Keyboard, Barcode Reader, Vein authentication
Printing system Thermal transfer system
Control method PC (ARM 32bit - MicroProcessor)
Communication mode RS232, CAN (2.0b 29bit ExtID)
Power consumption 250W
(varies from module combination)
Power Supply

100 ~ 240V, 50/60㎐

Operation
Temperature/Humidity
0~40℃, 10~80%


Cabinet - SC

Model JV-SC10
Dimensions(W*D*H) 750*580*1,950㎜
Weight

About 200~300㎏
(varies from module combination)

Acceptable products

Ampule, Vial, Pouch, Syringe, PTP, Box, Bottle, Catheter, IV bags, Frozen items

Control method PC (ARM 32bit - MicroProcessor)
Communication mode CAN (2.0b 29bit ExtID)
Power consumption 250W
(varies from module combination)
Power Supply

100 ~ 240V, 50/60㎐

Operation
Temperature/Humidity
0~40℃, 10~80%
