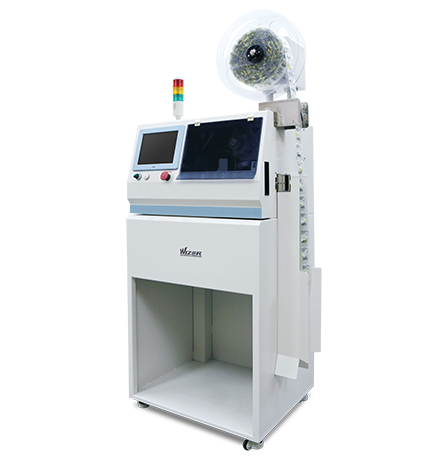

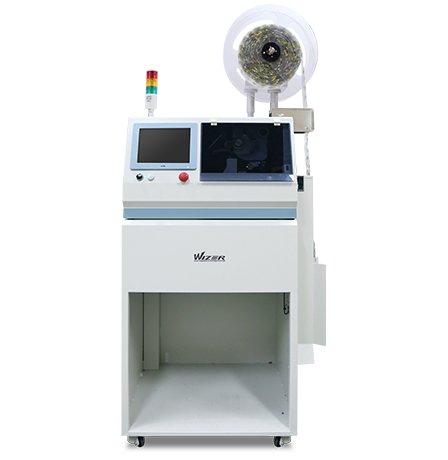

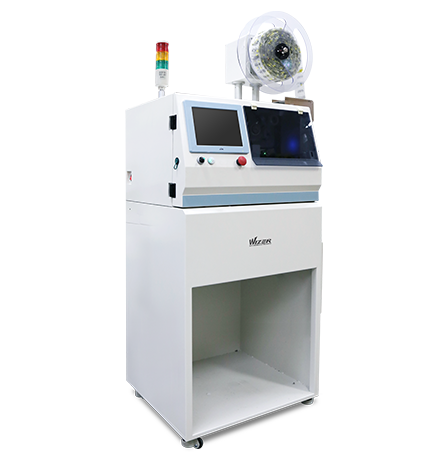

WIZER Automated Pouch Winding & Cutting System

WIZER is an automated pouch winding & cutting system that allows you to automatically roll (wind),
cut and package the inspected pouch strip by patient, period or a criteria / unit of your choice.

Automatic separation and release of faulty pouches

WIZER can be connected with VIZEN to share prescription and medicine data and the pouches with errors
are automatically released separately from the normal ones. All results are also saved for the tracking purpose.

Feature 01_EN.png


Easy-to-use touchscreen operation

The user can easily operate the system with the intuitive and easy-to-use touchscreen.
The light indicators and pop up notifications inform the user of the event even when the user is dealing with a different task.


Product Spec

※ Product exterior and specifications are subject to change due to the company's research and development results without any prior notice.

Model JV-WZ20
Dimensions(W*D*H) 700*630*1,420㎜
* When bobbin horizontally installed : 1,200*630*1,420㎜
* When bobbin vertically installed : 700*630*1,900㎜
Weight About 136㎏
Display and input Touch Screen 25.6㎝(10.1″) / All in one IPC
Winding Speed MAX. 135pack/min
Allowed packaging
content dimensions
MAX. 200㎜
Power consumption 150W
Power Supply 110V ~ 240V, 50/60Hz
Operation
Temperature/Humidity
0~40℃, 10~80%
Additional Option Bobbin(Ø400, 500㎜)
