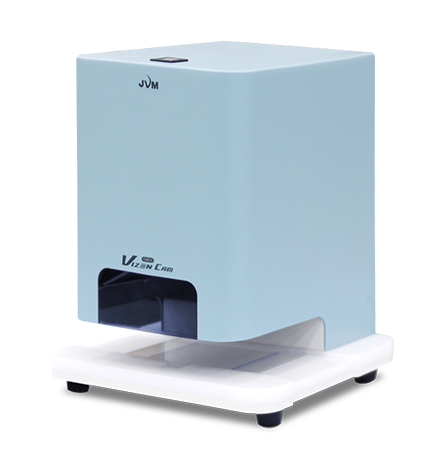

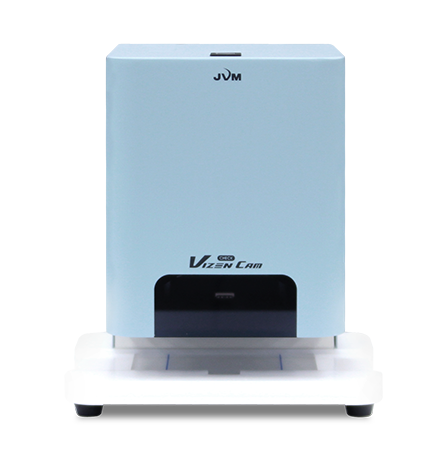

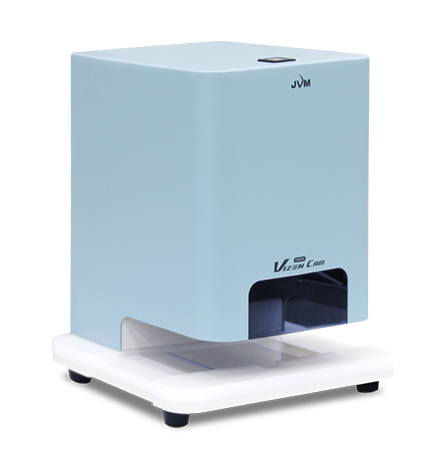

CHECK VIZEN CAM Modified pouch Imaging System

CHECK VIZEM CAM is an image capture system that captures the image of the modified pouch,
which was once sorted as faulty, to save it to the database.

Managed history for re-inspection results

Pouch images captured via CHECK VIZEN CAM is sent to CHECK VIZEN that maintains the re-inspection data
to use it to track medicines, search dispensing history, as well as to guide a safe administration for patients.

Product Spec

※ Product exterior and specifications are subject to change due to the company's research and development results without any prior notice.

Model JV-CVC10
Dimensions(W*D*H) 200*175*240㎜
Weight About 4.5㎏
Camera Specifications 2M
Power consumption 1.5W(MAX. 2.4W)
Power Supply 5V(PC USB Power)
Operation
Temperature/Humidity
0~40℃, 10~80%
